WindShape

WindControl

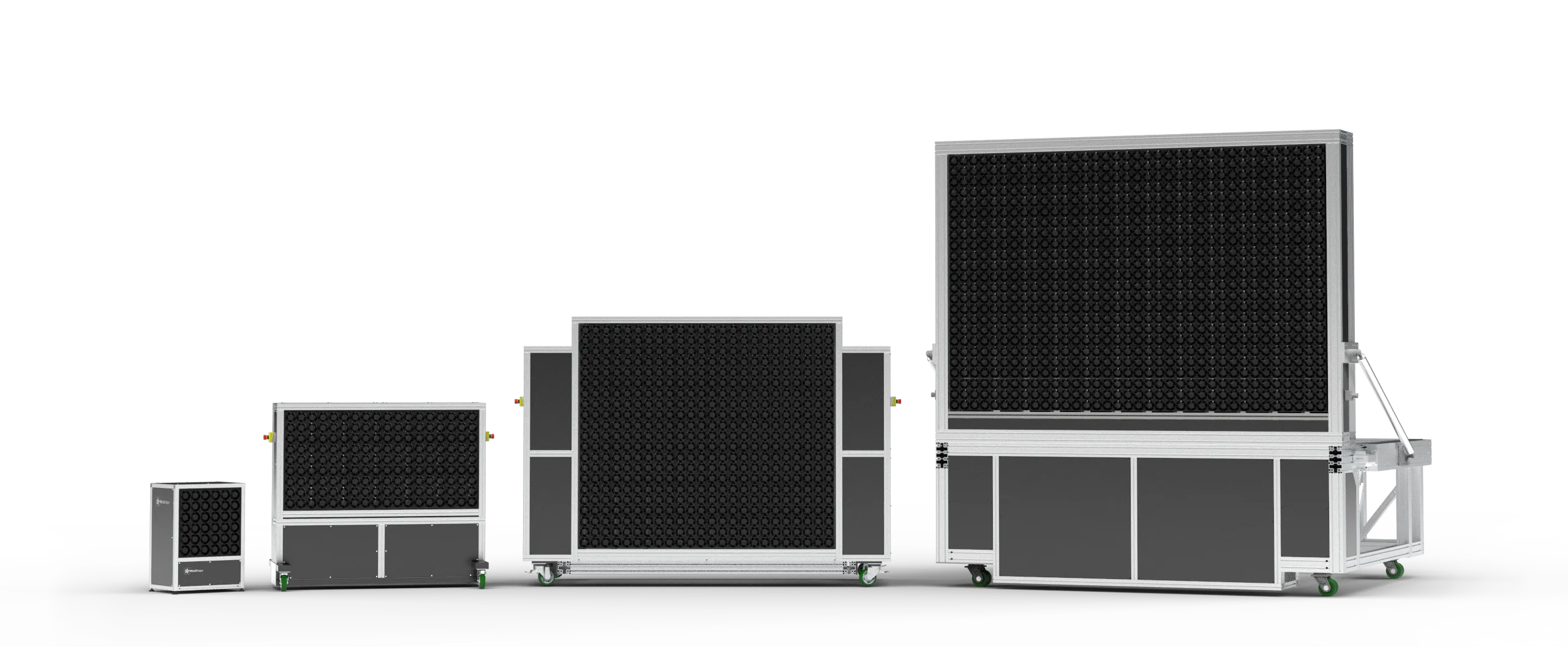

Python interface to control the WindShaper.

Key Concepts

Indexing

All user-facing indices are 1-based:

  • Rows (modules): 1 to number of rows
  • Columns (modules): 1 to number of columns
  • Fans (for 0816 modules): 1 to 9 in a 3x3 grid layout
Negative indices are supported for rows and columns, counting from the end (-1 is last, -2 is second last, etc.). Fan indices are always positive.

Fan numbering in 0816 modules (3x3 grid):

┌─────┬─────┬─────┐
│  1  │  2  │  3  │
├─────┼─────┼─────┤
│  4  │  5  │  6  │
├─────┼─────┼─────┤
│  7  │  8  │  9  │
└─────┴─────┴─────┘

Index (1,1) refers to the top-left module when viewing from the downstream side of the WindShaper.

Layer Selection

  • Use .downstream() to select the downstream layer
  • Use .upstream() to select the upstream layer
  • Not specifying a layer selects both layers (default)

Intensity

The intensity is given as a percentage (0.00-100.00%) with 2 decimal precision.

Different modules may have different characteristics, so 100% on one module type may give different wind speed than another module type at 100%. (2420 modules have higher max wind speed than 0816 modules at same intensity).

Builder Pattern

The fan control interface uses a builder pattern. You can chain multiple selection methods and apply an intensity to the selected fans.

Each time you set an intensity with set_intensity(), the currently selected fans are applied the given intensity internally, and the selection is reset.

The actual PWM command is only sent to the machine when you call apply(). You can also directly chain apply() after the last set_intensity() call.

# This sets and applies 75% intensity to fan(s) at row 1, column 2
fan_controller.row(1).column(2).set_intensity(75).apply()

# This sets 50% to row 1, then 80% to row 2, and applies both changes at once
fan_controller.row(1).set_intensity(50)
fan_controller.row(2).set_intensity(80)
fan_controller.apply()

This lets you create a wind profile in multiple selection calls and only apply when ready.

PSU Control

The SDK also allows you to control the PSU state (on/off) with set_psus(). You can give the state to apply to all PSUs of the machine.

import os
import threading
import time

from dotenv import load_dotenv
from windsuite_sdk import WindsuiteSDK

load_dotenv()

SERVER_IP_ADDRESS = os.getenv("SERVER_IP_ADDRESS", default="localhost")

stop_event = threading.Event()

def main() -> None:
    base_url = f"http://{SERVER_IP_ADDRESS}"

    print(f"Connecting to WindSuite server at {base_url}")

    sdk = WindsuiteSDK(base_url=base_url)
    sdk.start_communication()

    main_loop_hz = 0.2

    try:
        sdk.set_psu(state=True)
        stop_event.wait(timeout=2)
        print("Turning PSUs ON...")

        while not stop_event.wait(timeout=(1.0 / main_loop_hz)):
            # ! DO WHATEVER
            pass

    except KeyboardInterrupt:
        print("\nShutting down...")
        stop_event.set()
    finally:
        sdk.fan_controller.set_intensity(0).apply()
        sdk.cleanup()
        print("SDK stopped")


if __name__ == "__main__":
    main()

Basic Usage

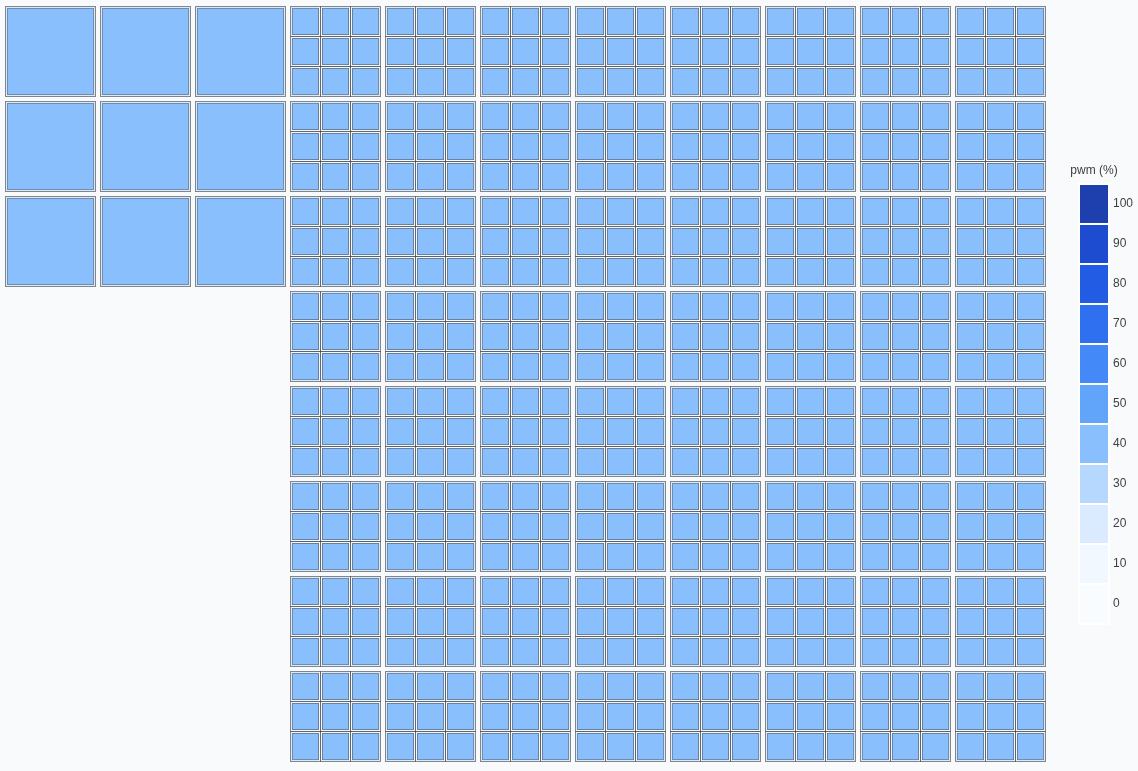

Set All Fans to a Single Intensity

set_all_fans.py
from windsuite_sdk import WindsuiteSDK

sdk = WindsuiteSDK(base_url="http://windshape.local")
sdk.start_communication()

sdk.set_psu(state=psu_state)
time.sleep(1)
sdk.fan_controller.set_intensity(percent=50).apply()

Selection Methods
